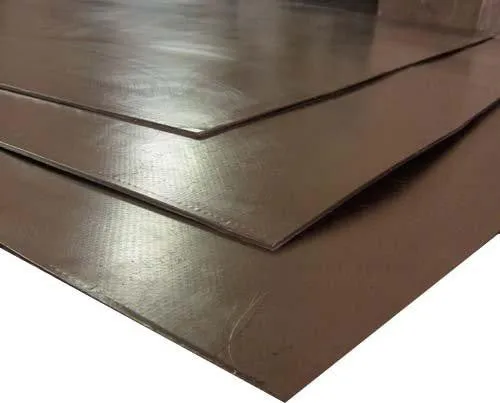

Corseal's  graphite laminate material with one

or more thin, flat stainless steel 316 insertions.

The thickness of the reinforcement is 0.05mm.

The graphite sheet is fixed to the insertion by means

of a super thin chloride-free adhesive layer.

This reinforcement results in a sturdy gasket which is

relatively easy to handle and simple to process into gaskets.

Service:

Graphite Foil Reinforced is used in a wide range of applications in

the chemical and petrochemical and manufacturing industries including pumps,

compressors and pipe joints.

It is commonly used on-site as an alternative to Graphite Tanged in sheet form,

due to the ease of manual cutting.

Approvals/Compliance: BAM for Oxygen, DVGW.

Thickness range : 1.0mm to 3.0mm

Standard sheet size = 1.0m x 1.0m , 500mm x 500mm

Other thicknesses & sheet size available on request.
